Flyrock Modelling

Kirra generates 3D flyrock shroud surfaces representing the ballistic envelope of flyrock hazards around blast holes. Four published models are available, and they will not agree with each other — that is expected, and reading the disagreement is part of using them.

⚠️ Before you use these

There is a lot of difference between models. Use of these models is the user’s responsibility, and it is on you to understand the repercussions.

On one 246-hole test blast, the four models gave 132 / 176 / 232 / 248 m for the same holes. A spread of about 2x is normal. They are independent empirical fits, not one model with four settings, and there is no setting that makes them agree.

Every model here produces an indicative envelope with a stated factor of safety, not a prediction. The authors themselves say so — McKenzie’s own field validation found measured throw averaged 4.8x less than predicted, with the absolute maximum measured at 56% of predicted.

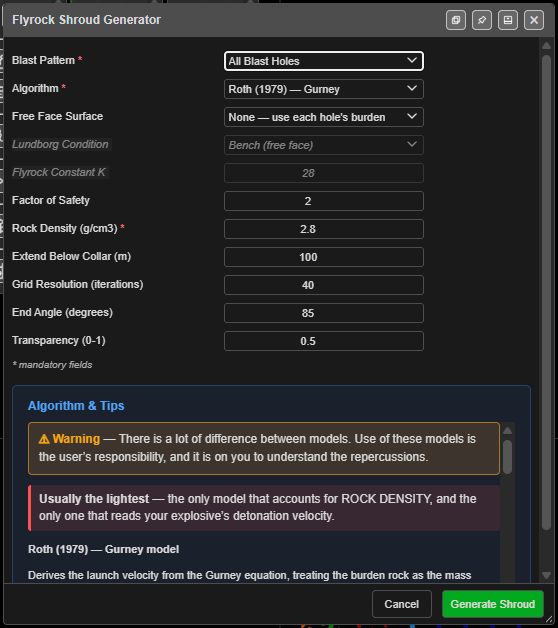

Flyrock Shroud Generator dialog The Flyrock Shroud Generator, opened from the Analyse toolbar. Inputs the chosen model does not use are greyed out.

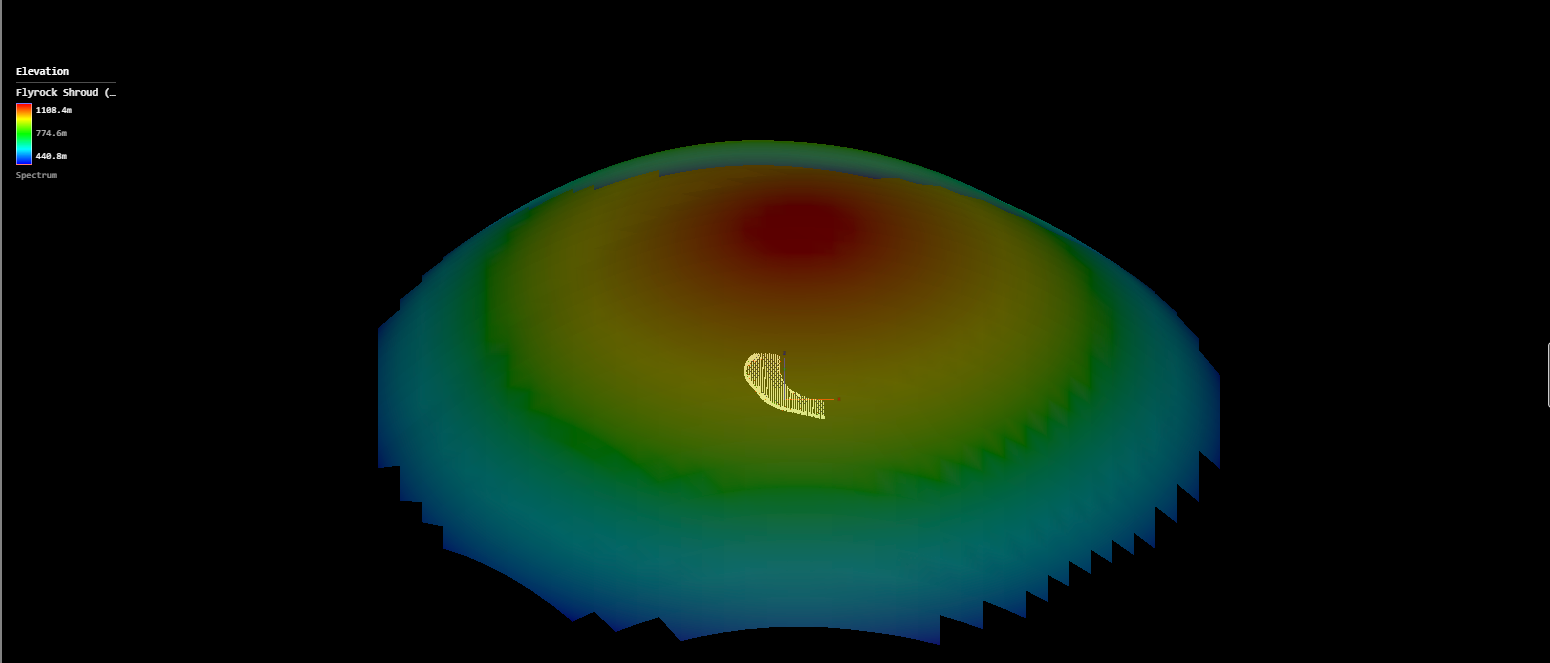

Flyrock shroud in 3D A Richards & Moore shroud over a blast in the 3D view, coloured by elevation.

Available Models

Each model uses a different subset of your blast data. Inputs a model has no equation for are greyed out in the dialog, so if a field is live, that model uses it.

Model Driven by Ignores
Richards & Moore K, burden, stemming, charge rock density
Lundborg hole diameter only everything else
McKenzie Scaled Depth of Burial K, burden
Roth rock density, burden, explosive VOD K

1. Richards & Moore (2004)

Three mechanisms — face burst, cratering and stem eject:

Face Burst = (K^2/g) x (sqrt(mass_per_metre) / burden)^2.6
Cratering  = (K^2/g) x (sqrt(mass_per_metre) / stemming)^2.6
Stem Eject = Cratering x sin(2 x theta)

The K constant carries the rock type. It is not a fudge factor — it is where rock enters this model, and because range scales as K squared, the choice is nearly a fourfold decision:

Rock K
Soft competent 13.5
Harder competent 27
Span of all published field data 15 – 37

Measured site values run 15.4 – 21.9 across four limestone mines, and 28.3 in oxide vs 21.9 in sulphide within the same pit. Calibrate K to your own measured throw where you can; do not trust a default.

Why there is no Stem Eject Angle setting. The stem-eject distance is cratering x sin(2θ), and sin(2θ) ≤ 1 always, so it can never exceed cratering. The launch speed then divides the same sin(2θ) straight back out. No angle you could enter can change any result, so the field was removed rather than left as a dial that does nothing.

2. Lundborg (1974)

A diameter-only estimate, published for two different situations that differ by a factor of 6.5:

Bench  (free face)      Lmax = 4.6 x diameter_mm^(2/3)
Crater (fully confined) Lmax = 30  x diameter_mm^(2/3)

Both give metres. Set the Lundborg Condition to Bench for a normal production blast — that is the default. Crater is for a fully confined charge or a misfire assessment.

For a 115 mm hole: bench 109 m, crater 709 m.

Lundborg also noted that cratering, and therefore flyrock ejection, is essentially eliminated once stemming exceeds 40 hole diameters.

3. McKenzie (2009/2022)

Scaled Depth of Burial based, using the contributing charge mass:

SDoB      = (stemming + (m/2) x diameter_m) / cbrt(contributing_charge_kg)
Range     = 9.74 x SDoB^(-2.167) x diameter_mm^(2/3)
Fragment  = 3 x SDoB^(-2.167) x (2600 / rock_density) x diameter_mm^(2/3)

The two exponents apply to separate terms — -2.167 to SDoB alone, 2/3 to the diameter alone.

SDoB below 1.0 is the dangerous band, and the range climbs steeply there, so this model reacts strongly to stemming and to almost nothing else.

The leading coefficient has been published three times

Source Coefficient
McKenzie 2009, 36th ISEE 11
McKenzie 2018, ISEE Australia 10
McKenzie 2022, Fragblast 13 9.74 — what Kirra uses

The exponents are identical every time; only the constant moves. Kirra follows the most recent, which is also the version accompanied by the 30-hole field validation. Some published work uses 11, which is why those figures sit about 13% above Kirra’s for the same charge.

That 13% is small beside the model’s own stated accuracy, so if you are comparing against a paper, check its date before assuming a discrepancy.

Rock density does not change McKenzie’s range

“Particle density does not affect the maximum projection range of particles, but it does affect the size of particles which can achieve the maximum range.” — McKenzie (2009)

A denser fragment launches slower but carries better against air drag, and the two cancel. On McKenzie, Rock Density changes the reported fragment size at the rim and nothing else — a 400 m throw of gravel and a 400 m throw of a boulder are very different risks, and that is what the number is for.

If you want density to size the shroud itself, use Roth.

4. Roth (1979)

Derives the launch velocity from the Gurney equation, treating the burden rock as the mass being propelled. The only model here in which rock density changes the throw.

c/m   = charge_per_metre / (rock_density x burden^2)
v0    = 0.44 x VOD x sqrt(c/m)     ANFO
v0    = (VOD/3) x sqrt(c/m)        other explosives
Range = v0^2 / g
Change Effect on throw
Double the rock density halves it
Double the burden quarters it
Double the detonation velocity quadruples it

Everything except rock density is taken from the holes and their charging — including detonation velocity, read from each product’s VOD.

Measuring the real burden to a free face

Kirra stores one burden per hole, and on a designed pattern that is the row burden — often the same number on every hole. Richards & Moore’s face-burst term and Roth’s b both want the minimum burden from the loaded part of the hole to the open face, which is a different quantity.

Set Free Face Surface to measure it. Rays are cast from the loaded interval only (rock beside stemming is not what a face burst throws) over a 120 degree fan, so a second open face off to the side is still found.

It can only tighten, never relax

A measurement is used only where it is smaller than the hole’s own burden. Every way this can go wrong — the wrong surface, a hole whose bearing points away from the face — produces a burden that is too large, and a larger burden means a smaller shroud. So:

A wrong surface can never shrink your exclusion zone. It will instead give an obviously huge one, and above 3x the design-burden result Kirra names the surface in a warning.

Reading the report

Free face: Bench (inside)
- 13 of 246 holes tightened (3.3-4.5 m)
- 233 measured looser - kept their own burden

A high measured looser count is normal — those are interior holes. A high found no face count means the surface does not cover your pattern.

Leave it as None and every hole keeps its stored burden.

3D Shroud Generation

The shroud is the parabola of safety — the highest a projectile can reach at any horizontal distance, for any launch angle:

altitude(d) = (V^4 - g^2 x d^2) / (2 x g x V^2)

So the dome height is always half its radius. The surface is built by:

  1. Computing per-hole flyrock parameters from charging data
  2. Creating a regular XY grid over the blast extent plus padding
  3. Computing maximum envelope altitude at each grid point
  4. Triangulating the grid and culling triangles outside the envelope

Each hole contributes its own dome and the shroud is their union, so the worst hole sets the outer edge.

The grid scales with the shroud. Spacing is derived from the envelope size, so every shroud has roughly the same triangle count and looks similar when zoomed to fit. Judge size against your blast pattern, not against the screen.

Configuration

Parameter Default Description
Blast Pattern All Blast Holes Which holes to shroud
Algorithm Richards & Moore Which published model
Free Face Surface None Measure real burden to this surface
Lundborg Condition Bench Bench or crater — Lundborg only, 6.5x apart
Flyrock Constant K 20 Site constant — Richards & Moore only
Factor of Safety 2 Multiplies the clearance distance
Rock Density 2.6 g/cm3 Water 1.0, granite ~2.6, iron ore 3.3-4.0
Extend Below Collar 0 m Continue the dome below collar level
Grid Resolution 40 Mesh density only — does not change the size
End Angle 85 deg Trims the steep rim
Transparency 0.5 Display only

Rock Density is in g/cm3, the same unit Kirra uses for explosive density. Enter 2.6, not 2600.

How to Use

  1. Load blast holes with charging data assigned (Deck Builder)
  2. Click Flyrock Shroud Generator on the Analyse toolbar
  3. Choose an algorithm — greyed-out fields are ones that model cannot use
  4. Optionally pick a Free Face Surface to measure real burdens
  5. Click Generate Shroud — or Cancel to close without one
  6. Read the completion report, “Shroud created: … triangles”. With a free face it stays open until you close it

What you get

The shroud is a surface named for the model and factor of safety — for example Flyrock Shroud (RM-FoS2) (RM Richards & Moore, LB Lundborg, MK McKenzie, RO Roth) — on the Flyrock surface layer. It shows in 2D and 3D and is saved with the workspace.

To remove it, use Undo straight away, or delete the surface like any other. The dialog remembers your settings, and they travel in KAP projects.

Holes that are skipped

A hole is left out, and listed in the report, if it has no charging, a diameter of 0 mm, no explosive decks, or less than 0.5 m of stemming (treated as unstemmed or presplit). If every hole is skipped, no shroud is made and Kirra says why — “Check the hole design data (diameter, charging, stemming) and use the Deck Builder to assign explosives.”

Note: A hole whose stored burden is 1.5 m or less is treated as having a 4.5 m burden, and spacing of 1.5 m or less as burden × 1.15. Check burdens are set on the holes.

To compare models fairly, keep Factor of Safety, Extend Below Collar, Grid Resolution and End Angle identical between runs, and use FoS = 1 while comparing — then apply your real factor of safety once at the end.

Setting the exclusion zone

Take the largest of the models you trust, then apply a factor of safety. Two published rules, and they differ a lot:

Terrock (Richards & Moore’s own):

McKenzie, risk-based, from 30 field-measured holes:

Which your site accepts is a risk decision, not a calculation.

Example Calculation (Richards & Moore)

115 mm hole, 12 m bench, 2 m stemming, 3.6 m burden, 1 m subdrill, 1.2 g/cm3 explosive, K = 20, FoS = 2:

The same hole on the other models, at FoS = 1: Lundborg bench 109 m, McKenzie 203 m with a 63 mm fragment at the rim.

Troubleshooting

Check Symptom if wrong
Rock Density in g/cm3 (2.6, not 2600) Roth enormous or tiny
Lundborg Condition set to Bench Lundborg 6.5x everything else
Extend Below Collar = 0 when comparing every dome inflated
K matches your site’s rock Richards & Moore alone is off
Factor of Safety equal across runs everything scaled together
Free Face Surface is the blasting face a warning appears, shroud several times too big
found no face count is high the surface does not cover the pattern

Shrouds accumulate — nothing removes a previous one, and the largest dominates the view. If a change appears to do nothing, check you are not looking at an older shroud.
